1700 lb Double Sided Magnet

1700 lb Double Sided Magnet

49 Reviews
Regular price $75.99
/
  • Magnet Type: Double Sided
  • Pull Force: 1,700 Lbs (combined)

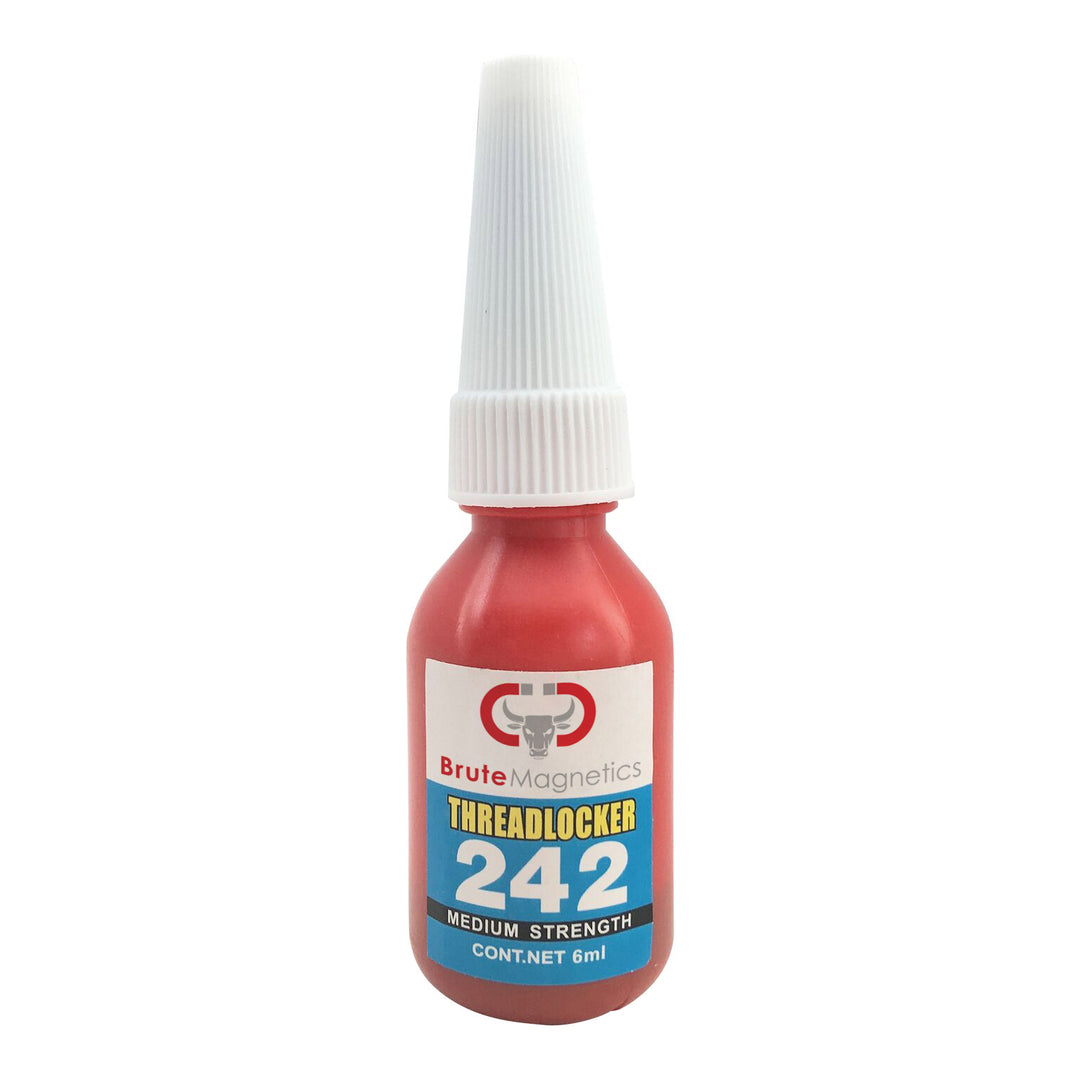

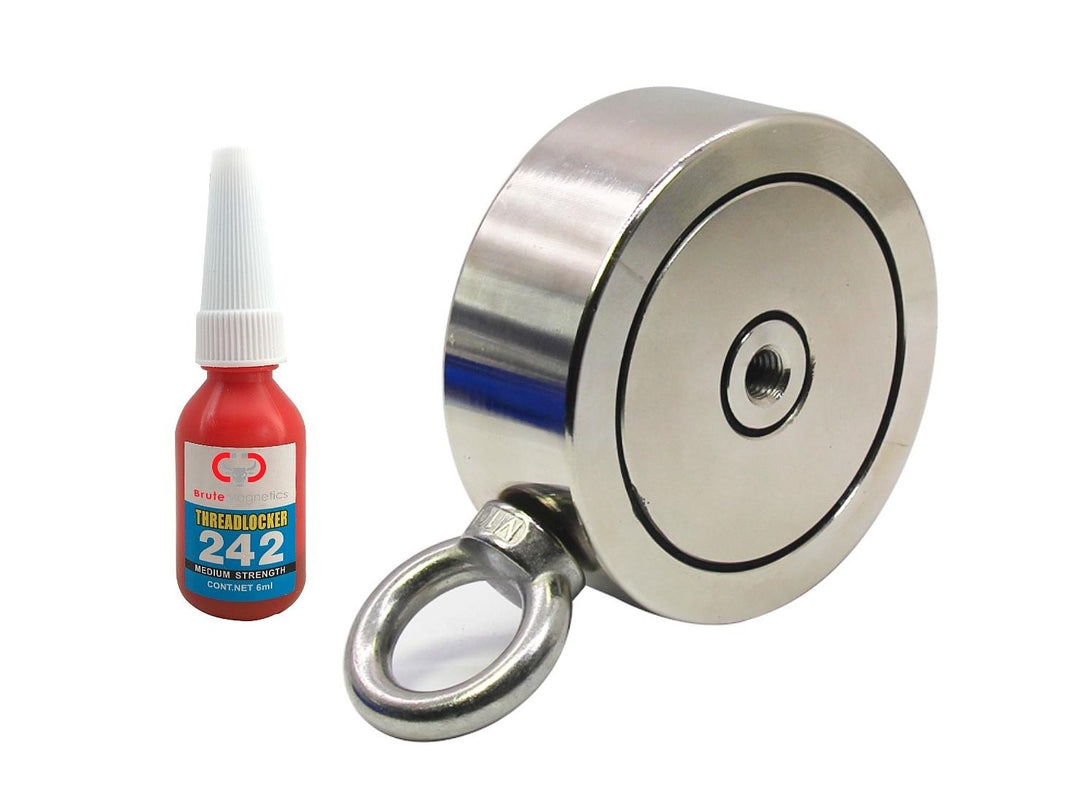

  • Includes: 2 Eyebolts and 6ml bottle of Threadlocker
  • Weight: 4.74 lbs
  • Experience Level: Intermediate
Shipping calculated at checkout.

This 1,700 lb. magnet was specifically designed with magnet fishing in mind.  You won't have to worry which way the magnet is oriented under water.  This design provides more versatility by allowing it to be used as a double sided, or single sided magnet. The eyebolt mounted on the face/flat top of the magnet would provide the strongest attachment. The values we state are measured when pulling this way. When placed in the edge/side (which is a great option for dragging and catching from both sides) the pull force is now "shear" so the force is somewhat reduced.

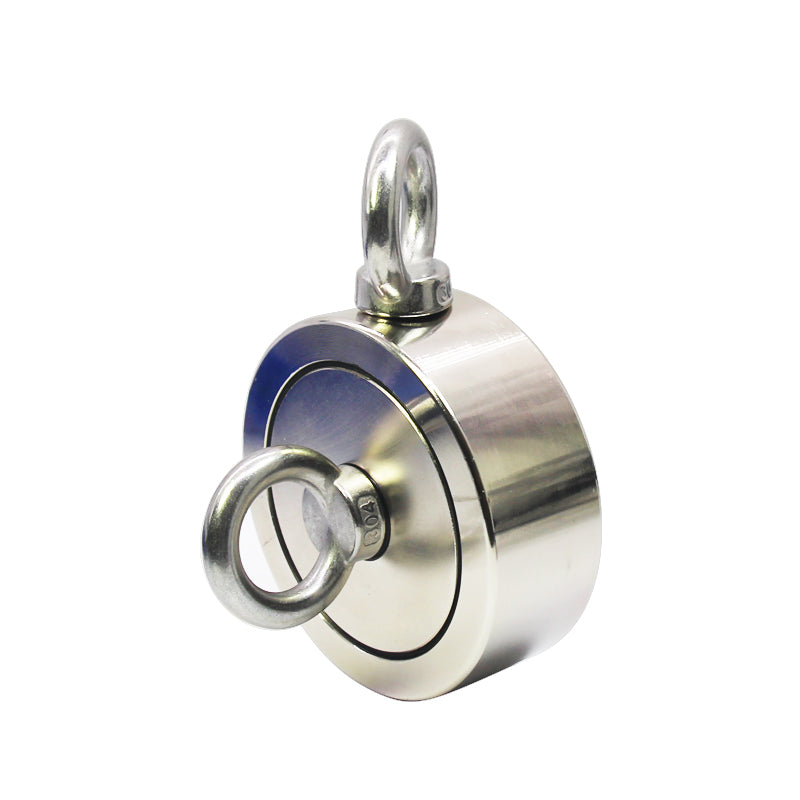

Includes two stainless steel M10 eyelets.  This magnet is made with A3 steel plate and coated with Nickel-Copper-Nickel to be the strongest and most durable type of permanent magnet available.

Please note that 1700 lbs is a combined maximum weight between the two magnets.  Each side will produce 850 lbs of pulling force.

Recommended Rope: 1/4" Double Braided Rope or 1/3" Heavy Duty Rope

Magnet Care & Help

For additional informations and help go to our buying guide or take our Quiz.

Choosing a magnet is different for everyone based on where you plan to Magnet Fish, how experienced you are and budget. Take our Magnet Fishing Quiz or check out our Buying Guide for help. Or feel free to email us!

To prolong the life of your magnet, rinse and dry thoroughly after each use. It also
doesn't hurt to rinse your ropes and wring them out.

Do not store anything damp in our airtight cases. This will lead to a corroded magnet, compromised rope and a smelly airtight case.

Due to the abrasive nature of magnet fishing, the surface coating will eventually become scratched, but that will not affect the pull strength of the magnet. To prolong the life of your magnet, consider adding an additional marine protectant or fluid film to help inhibit corrosion.

If you’re magnet fishing in saltwater you may want to consider one of our anti-corrosion magnets. These are made with a special stainless casing which makes them corrosion resistant.

Although it has the appearance of solid metal, neodymium actually behaves more like a ceramic and can crack/chip. Do not use in shallow or rocky waters.  Consider our anti-collision magnets if you target these areas. WE ARE UNABLE TO REPLACE MAGNETS WHICH CHIP OR CRACK DURING USE, AS THIS IS AN INHERENT RISK OF MAGNET FISHING.

Heat above 160° F can permanently demagnetize your magnet.

Large magnets have a very strong attractive force and improper handling could cause severe pinching/crushing injury. Use caution!

Neodymium magnets are not toys. Keep away from children.

Pacemakers and other sensitive electronics can be adversely affected by strong magnetic fields. If you wear a pacemaker, do not handle strong magnets.

If you are using magnets to hang heavy objects, choose a weight rating that greatly exceeds the object to the hung. Our weight ratings are based on ideal conditions. Surface conditions and metal thickness greatly affect magnet capacity.

Breaking strength of our double-braided ropes:

Paracord : 649 LBS

¼” : 1,680 LBS

⅓” : 3,840 LBS

0.40” : 5,680 LBS

These breaking strengths are with a direct pull, no bends, kinks or other loops. All kits ship with rope that is sufficiently strong for the magnet when held under its own power.  When magnets are wedged and require mechanical assistance to break free it is possible the force needed exceeds the breaking strength.  It is best to exhaust all avenues of recovery prior to using mechanical force due to the potential for the rope to break. Shop our Ropes Collection.

It's not unusual for your magnet to get stuck; sometimes on a heavy object (like a metal pier column) or wedged between some rocks. When this happens, try these solutions;

Try pulling firmly and steadily but not with all your might to assess if you're freeing it or making it worse.

Pull from different angles (for example, the other end of the pier or the opposite side of the boat launch.)

Put a lot of slack in your rope and let the current (if there is one) work for you, moving your line into a new position.

If it’s safe and you can swim, go in after it! Some snorkeling gear will make this a fun and relatively effortless endeavor. You can actually pull yourself down the line directly to the magnet to visually assess the situation and free your magnet or you can stay on the surface and swim your line over and then past the point of hang up and free it from a different vantage point.

If all else fails, you might try a more aggressive approach with a bumper winch or come along. But beware, this can possibly stretch your rope to the breaking point.
